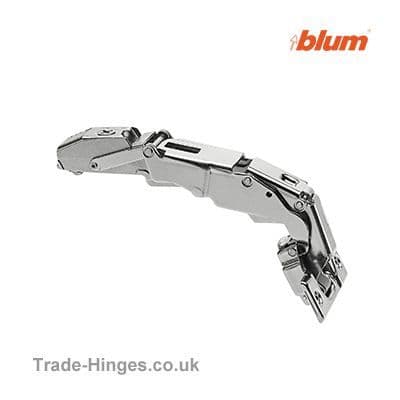

Zero Protrusion Hinge - Unsprung
-670-dv-p.jpg?v=318d8ab3-346d-4b15-bb43-5f07cf51d27b)
-670-p.jpg?v=318d8ab3-346d-4b15-bb43-5f07cf51d27b)
| Blum Hinge Overlay | 70T7550.TL | Technical Guide Specifications | |
|---|---|---|---|
| Opening Angle | 155 Degree | ||
| Handleless Application | Yes Un-Sprung Hinge | ||
| Boss Type | Screw On | ||
| Boss Bore Size | 35mm x 12mm Deep | ||
| Door Thickness | Designed for 20 to 24mm or up to 31mm, with a 92°opening angle stop | ||

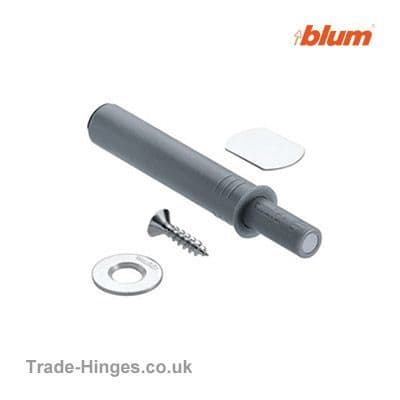

| Tip-On Push to Open | Purchase Separately | ||
| Adjustment | 3 Way with Spiral-Tech | ||
| Side Adjustment | + / - 2 mm | ||
| Depth Adjustment | + 3 / - 2mm | ||
| Accessories | |||
 |
Tip-On Push to Open | Various Options | Click Here.. |
 |
Back Plates | Various Options | Click Here.. |
| Price is per hinge - Lifetime Guarantee | |||
£240.99
£5.04
£6.58
From: £0.70
£0.93
