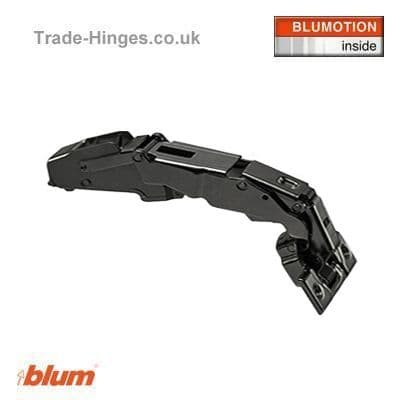

Blum 71B7650.ONS is a half-overlay, zero-protrusion hinge in Onyx black featuring integrated soft-close and a wide 155° opening angle. The special design also allows drawers behind a cabinet door to pull forward, without causing obstruction.
Suitable for door thicknesses from 20mm to 24mm, or up to 31mm when used with a 92° opening angle stop. For cabinets with thicker side panels between 23mm and 34mm, a 110° opening angle stop is required to prevent hinge binding.
BLUMOTION provides a smooth, silent, soft-close action every time. The high-quality motion is maintained even on small or lightweight doors and can be easily deactivated via a switch on the hinge boss if required.
Ideal for kitchens, bedrooms and storage units, in both residential and commercial settings where a wide angle is required or drawers and pull-outs are fitted behind the door. Click to learn more...
Features:
- Sleek Onyx Black for darker cabinetry
- Soft-close mechanism integrated into the hinge cup
- Three-sided accessibility for greater installation flexibility
- 155° opening angle for easy access
- Screw-on boss design with a 35mm diameter, 12mm deep bore
- Suitable for doors with thicknesses from 20mm to 24mm, and up to 31mm when used with a 92° opening angle stop
- Can be used for cabinet side thicknesses ranging from 23mm to 34mm, if used with a 110° opening angle stop
Technical Guide Specifications
Adjustment: 3 Way with Spiral Tech
Side Adjustment: + / - 2mm
Depth Adjustment: + 3 / - 2mm
