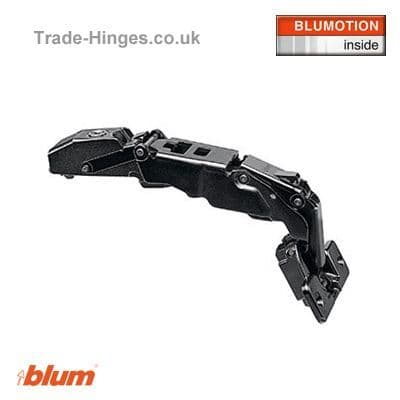

The Blum 71B7550.ONS is a soft close zero-protrusion cabinet hinge in Onyx Black with a 155° wide opening angle, designed for doors with internal drawers or pull-out systems. The nil-protrusion design allows drawers to pass the door freely without obstruction even at reduced opening angles.
Suitable for door thicknesses 20mm to 24mm, or up to 31mm when used with a 92° opening angle stop. For cabinet sides 23mm to 34mm thick, a 110° opening angle stop is required to prevent hinge binding.
Integrated blumotion soft close ensures smooth, silent closing on every use. The soft close function works reliably on both light and heavy doors and can be easily deactivated via the switch on the hinge boss if required.
Ideal for kitchens, pantries and storage units in residential and commercial settings where drawers or pull-outs need to operate freely behind the door. Click to learn more...
Features:
- Soft-close mechanism integrated into the hinge cup
- Three-sided accessibility for greater installation flexibility
- 155° opening angle for easy access
- Features a screw-on boss design with a 35mm diameter, 12mm deep bore
- Suitable for doors with thicknesses from 20mm to 24mm, and up to 31mm when used with a 92° opening angle stop
- Can be used for cabinet side thicknesses ranging from 23mm to 34mm*
*110° opening angle stop is required
Technical Guide Specifications
Adjustment: 3 Way with Spiral Tech
Side Adjustment: + / - 2mm
Depth Adjustment: + 3 / - 2mm
