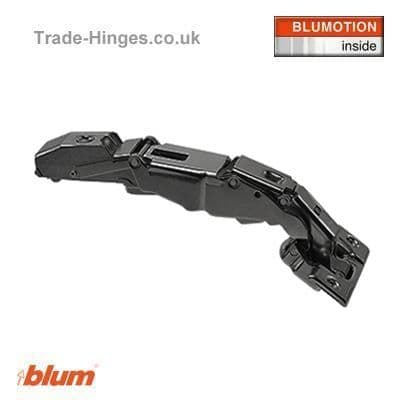

The Blum 71B7550D soft close zero-protrusion hinge in Onyx Black features a 125° wide opening angle and is designed for thicker cabinet doors and cabinets with internal drawers or pull-out systems. The nil-protrusion design allows drawers to move forward past the door without obstruction. Suitable for door thicknesses from 29mm to 31mm, or up to 39mm when used with a 110° opening angle stop.

Integrated blumotion soft close provides smooth, silent closing on every use and performs reliably, even on heavier doors. The soft close function can be easily deactivated via the switch on the hinge boss if required.

The clip top mechanism allows the hinge to clip directly onto the mounting plate for fast installation. Three-dimensional adjustment enables precise door alignment, while the durable nickel-plated steel construction ensures long-lasting performance.

Suitable for residential and commercial cabinetry featuring thicker doors and internal drawers or pull-outs that need a wide opening angle. Click to learn more...

Features:

• Soft-close mechanism integrated into the hinge cup
• Three-sided accessibility for greater installation flexibility
• 125° opening angle for easy access
• Features a screw-on boss design with a 35mm diameter, 12mm deep bore
• Suitable for doors with thicknesses from 29mm to 31mm, and up to 39mm when used with a 92° opening angle stop
• Can be used for cabinet side thicknesses ranging from 23mm to 34mm*

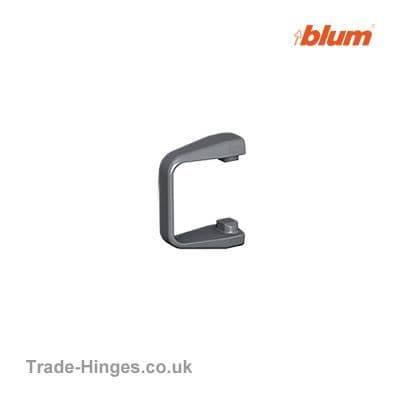

*110° opening angle stop is required

Technical Guide Specifications

Adjustment: 3 Way with Spiral Tech

Side Adjustment: + / - 2mm

Depth Adjustment: + 3 / - 2mm
