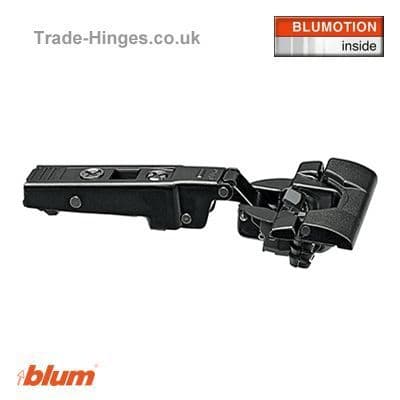

Onyx Soft Close Thick Door Inserta Hinge Overlay

Onyx Soft Close Thick Door Inserta Hinge Overlay
Product Code: 71B9590.ONS
Brand: Blum
£5.70 Inc VAT
More Information

SUPERB 110° soft close hinges with everything inside - Click to learn more...

Blum hinges - the name just says quality and function. These new onyx Inserta (quick assembly) hinges showcase the latest technology. The sleek and sophisticated design hides the Blumotion whilst delivering a precise slow close action every time.


  • Soft close mechanism is built into the hinge cup
  • Deactivation switch for lighter/smaller doors
  • Designed for a door thickness of 25 to 32mm
  • Requires 35mm diameter hole with a minimum depth of 13mm
  • Requires 2 x 8mm diameter fixing holes
  • Easy tool-free assembly & removal with all current CLIP mounting plates
Adjustment:  3 Way with Spiral Tech                  Technical Guide Specifications
Side Adjustment+ / - 2mm
Depth Adjustment    + 3 / - 2mm
Price is per hinge - Lifetime Guarantee
