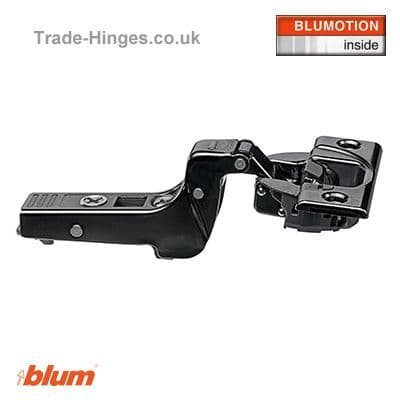

Onyx Soft Close Thick Door Hinge Inset
These hinges have been designed for use with doors ranging from 25 to 32mm.
Features:
- Soft closing mechanism is built into the hinge cup
- Deactivation switch for lighter/smaller doors
- Pivoting point for thicker doors 25 to 32mm
- Requires 35mm diameter hole with a minimum depth of 13mm
- Easy tool-free assembly & removal with all current CLIP mounting plates
Adjustment: | 3 Way with Spiral-Tech | Technical Guide Specifications | |
Side Adjustment | + / - 2 mm | ||
Depth Adjustment | + 3 / - 2mm | ||
Price is per hinge - Lifetime Guarantee |
