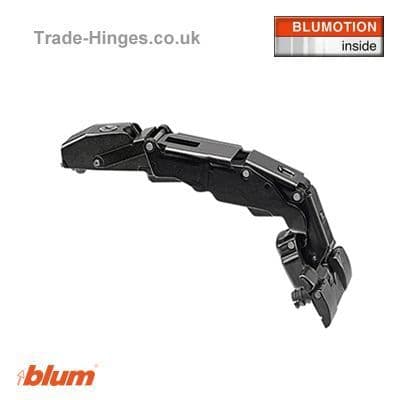

Blum 71B7590.ONS is a zero-protrusion soft-close hinge in Onyx black, designed for cabinet doors that require a wide 155° opening angle. The unique design allows drawers to pull out fully past the open door without obstruction.
Suitable for door thicknesses from 20mm to 24mm, or up to 31mm when used with a 92° opening angle stop. For cabinets with thicker side panels between 23mm and 34mm, a 110° opening angle stop is required to prevent hinge binding.
This hinge features Inserta tool-free hinge-to-door assembly, allowing fast and accurate installation without screws, while soft close technology ensures smooth, silent, and effortless closing every time. The soft-close function can be easily switched off via the hinge boss.
Ideal for kitchens, bedrooms, and storage units in both residential and commercial spaces, particularly where a wide opening is needed or where drawers and pull-outs are fitted behind the door.
Features:
- Soft-close mechanism integrated into the hinge cup
- Three-sided accessibility for greater installation flexibility
- 155° opening angle for easy access
- Features Inserta boss type design for easy installation
- Suitable for doors with thicknesses from 20mm to 24mm, and up to 31mm when used with a 92° opening angle stop
- Can be used for cabinet side thicknesses ranging from 23mm to 34mm*
*110° opening angle stop is required
Technical Guide Specifications
Adjustment: 3 Way with Spiral Tech
Side Adjustment: + / - 2mm
Depth Adjustment: + 3 / - 2mm
