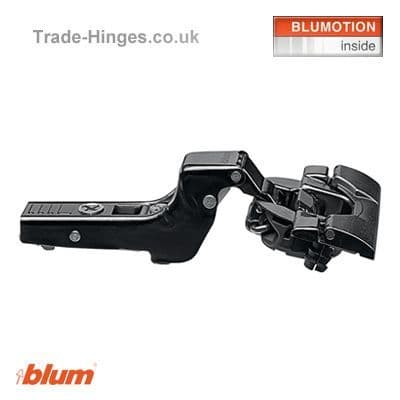

Onyx Soft Close Inserta Cabinet Hinge Inset
SUPERB 110° soft close hinges with everything inside - Click to learn more...
Blum hinges - the name just says quality and function. These new onyx Inserta (quick assembly) hinges showcase the latest technology. The sleek and sophisticated design hides the Blumotion whilst delivering a precise slow close action every time.
Features:
- Soft close mechanism is built into the hinge cup
- Deactivation switch for lighter/smaller doors
- Designed for a door thickness of 16 to 26mm
- Requires 35mm diameter hole with a minimum depth of 13mm
- Requires 2 x 8mm diameter fixing holes
- Easy tool-free assembly & removal with all current CLIP mounting plates
Adjustment: | 3 Way with Spiral Tech | Technical Guide Specifications |
Side Adjustment | + / - 2mm | |
Depth Adjustment | + 3 / - 2mm | |
Price is per hinge - Lifetime Guarantee |
