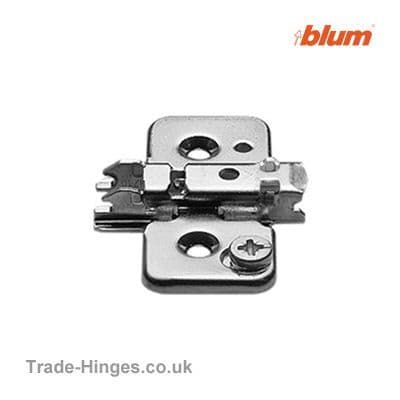

Mounting Plate 173H7100
Select the option relevant to the thickness of the cabinet side where the plate is to be attached to allow for correct door spacing.
Attributes:
- Mounting plate system: CLIP
- Spacing: 0mm for 18mm cabinetry, 3mm for 15mm cabinetry
- Shape of mounting plate: Cruciform
- Material: Steel
- Finish: Nickel plated
- Fixing: for Chipboard screws
- Height adjustment: +/- 2mm through lower and upper part/cam
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm
