The Aventos HK-S lift-stay is ideal for small doors and won't collide with design elements such as cornice. Sets are simple to install and smooth to operate, allowing unobstructed access to overhead cabinets. The surface-mount mechanism installs to the cabinet side and eliminate the need for further hinges. The mechanism uses a clip-on feature, allowing doors to be removed without tools.

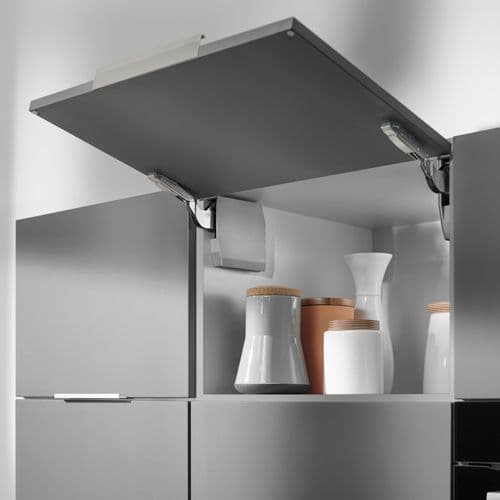

The lift mechanism effortlessly lifts the door through 107° while the variable stop ensures the fascia remains in the desired location. Should you need to limit the opening range due to available clearance, 75° restrictors are available. As the door closes, integral soft-close dampers effortlessly and silently draws the door to a controlled close.

The Blum HK-S Lift mechanism is easily adjusted for opening and closing tension or door alignment.

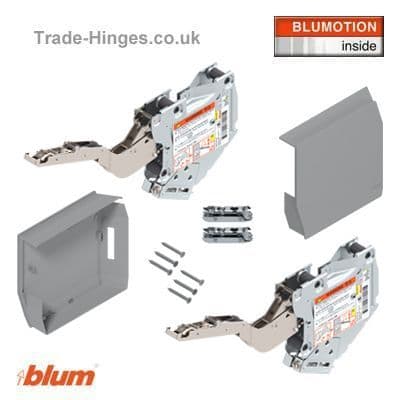

Set Comprises:
2 x Lift mechanisms
2 x Plastic cover caps
2 x Door mounting brackets

1 set is required per cabinet. The door flap must be a maximum height of 600mm.

TO DETERMINE THE CORRECT POWER FACTOR
Multiply the cabinet height (mm) by the door weight (kg) *Door Weight Calculator
We recommend the more powerful lift for over lapping weight.

Additional Information:
Minimum Internal Depth: 163mm
Minimum Internal Height: 150mm

Please Note:
The power factor and the door weight can be increased by 50% when a third mechanism is used.


This product is excluded from our 5% repeat customer discount.
