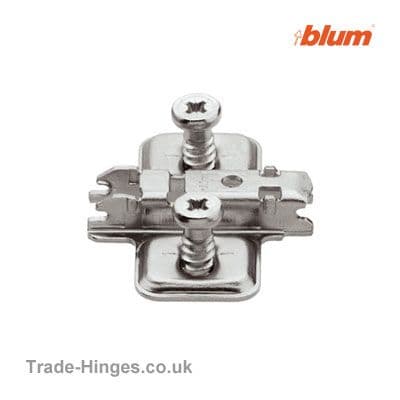

Home / Cabinet Hinges / Blum Mounting Plates Product Description Pressed steel cruciform mounting plates are compatible with all Blum clip/clip top hinges. Pre-mounted euro screws are included for added fixing durability, with the option to use a third fixing point for wide angled hinges or heavy doors. If drilling holes, buy our handy jig to ensure accuracy every time. To ensure correct door spacing, select option relevant to the thickness of the cabinet side where plate is to be attached. Attributes: Mounting plate system: CLIP Shape of mounting plate: Cruciform Spacing: 0mm for 18mm cabinetry, 3mm for 15mm cabinetry Material: Steel Finish: Nickel plated Fixing: Pre-mount screws (removable) Height adjustment: +/-3mm with elongated hole Installation: Distance between fixing positions: 32mm Distance cabinet front edge to first fixing position: 37mm Diameter of fixing holes: 5mm Drilling depth of fixing holes: 11.5mm Specifications Brand Blum Product Code 173L8100 Description Pressed steel cruciform mounting plates are compatible with all Blum clip/clip top hinges. Pre-mounted euro screws are included for added fixing durability, with the option to use a third fixing point for wide angled hinges or heavy doors. If drilling holes, buy our handy jig to ensure accuracy every time. To ensure correct door spacing, select option relevant to the thickness of the cabinet side where plate is to be attached. Attributes: Mounting plate system: CLIP Shape of mounting plate: Cruciform Spacing: 0mm for 18mm cabinetry, 3mm for 15mm cabinetry Material: Steel Finish: Nickel plated Fixing: Pre-mount screws (removable) Height adjustment: +/-3mm with elongated hole Installation: Distance between fixing positions: 32mm Distance cabinet front edge to first fixing position: 37mm Diameter of fixing holes: 5mm Drilling depth of fixing holes: 11.5mm Attributes Brand Blum Product Code 173L8100 Delivery & Returns Cruciform Backplate Product Code 173L8100 Select Option Cabinet Thickness 15mm Cabinet Thickness 18mm RRP: £0.53 £0.39 £0.33 (ex. VAT) Login to add this product to your wishlist.
