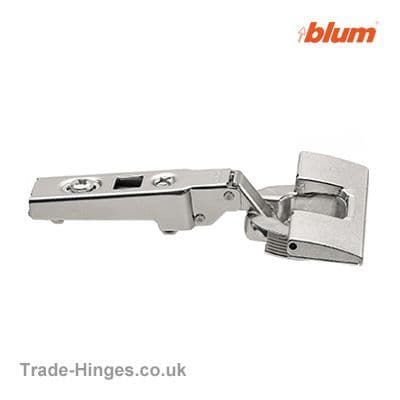

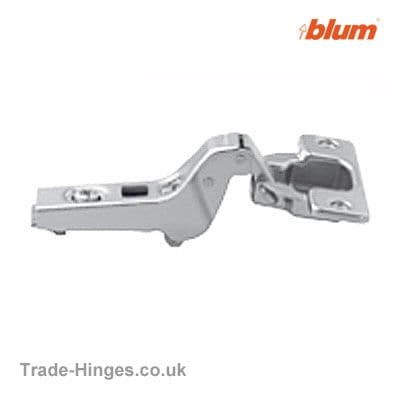

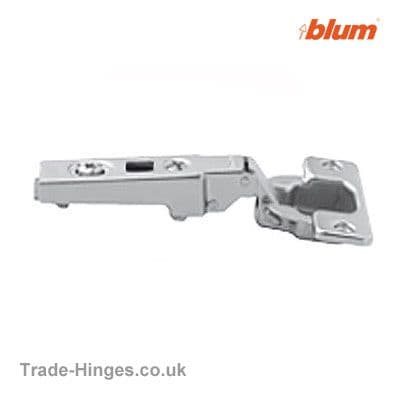

These hinges allow the cabinet door to open 100 degrees enabling easy access to the stored contents within. Constructed from metal alloy finished with a durable nickel coating and compatible with all mounting plates in Blum's Clip Top range. Two types of hinges are available, straight hinges are used for overlay door applications while inset hinges are used when doors fit within the cabinet frame.
Blum hinges kitchen or for other applications are synonymous with being easy to install. A 35mm hole bored to a min depth of 11mm is required for doors 15-24mm thick. Each hinge requires a mounting plate attached to the cabinet side, 0mm when used with 18mm thick carcases and a 3mm mounting plate when used with a 15mm carcass.
The door with the 100 degree clip hinge then simply clips to the mounting plate without the need for tools. Once fitted, these hinges are fully adjustable in three dimensions for easy door alignment (107, 110, 170, 155 degree hinges have a refined spiral screw). These hinges concealed within the cabinet are known as sprung, staying open or closed as required and may be turned into soft close hinges with the addition of the optional clip on soft close mechanism. Hinges for cabinets can be purchase individually or as a discounted bundle to include a 0mm mounting plate and hinge arm cover.
