Mounting plate overload?
You’ve assessed the cabinet, checked how wide the door will open and chosen your hinges. Job done. Then the lovely representative on the phone asks, “which mounting plate would you like?”
Long pause….. “There’s more than one?”
Just like our wide range of hinges, there are multiple options for mounting plates (the bit which fixes to the cabinet) and your hinge clips to. A lot of time it comes down to personal preference. Many joiners will take the same plate each time, as it’s the one they’ve always used. If it works, why change it?
However, if you’re choosing for the first time, it can appear daunting, so we’ve outlined the most ordered ones and the reasons why they’re popular.

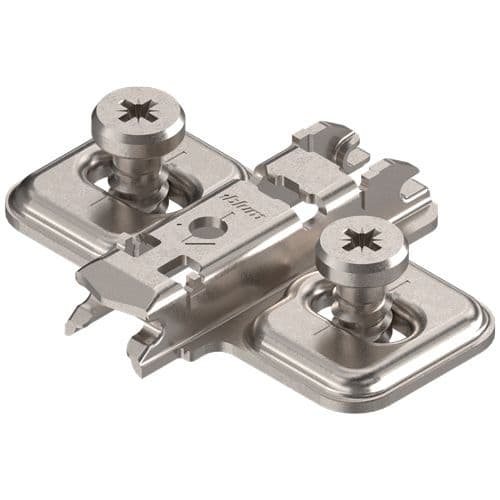

Blum 173L8100 – Clip Cruciform Mounting Plate (0mm)
This is a straightforward, manually-adjustable clip-on cruciform plate designed for quick installation as it comes with pre-mounted system screws (requiring pre-drilled 5mm diameter holes).
Typical use and benefits:
- Fast clip-on installation reduces fitting time
- Simple, robust design with minimal components
- Suitable for standard cabinetry where cam adjustment is not required
- Ideal for pre-accurate or well-manufactured carcasses
- Maximum amount of height adjustment
This plate is often selected for straightforward, repeatable installations where speed is prioritised over post-install adjustment.

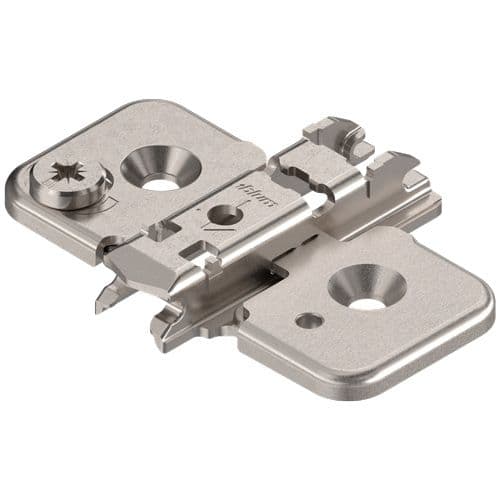

Blum 173H7100 - Clip Cruciform Mounting Plate (with Cam, 0mm)
This version includes cam adjustment, offering additional ease of adjustment after installation. Compatible with self-tapping screws so 2.5mm pilot hole is sufficient.
Typical use and benefits:
- Cam allows fine height adjustment after fitting
- Useful when carcasses are slightly out of square
- Maintains quick clip-on installation system
- Suitable for general cabinetry where minor correction may be needed
This plate is commonly used where installers want a balance between speed and post-fit adjustability.

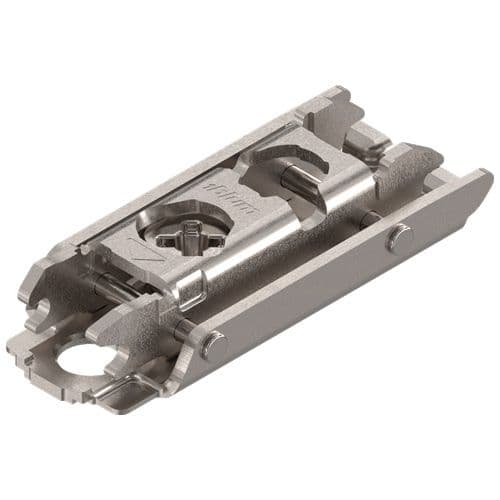

Blum 175H3100 - Clip Horizontal Mounting Plate (with Cam, 0mm)
A horizontal mounting plate designed for applications where vertical access is limited or where side fixing is preferred. Compatible with self-tapping screws, so 2.5mm pilot hole is sufficient.
Typical use and benefits:
- Horizontal fixing simplifies installation in tight spaces
- Cam adjustment allows post-install alignment
- Useful where vertical screw access is restricted
- Maintains compatibility with Blum CLIP, CLIP top and CLIP top BLUMOTION hinges
This option is typically chosen for installations where cabinet design or site conditions make vertical mounting less practical.

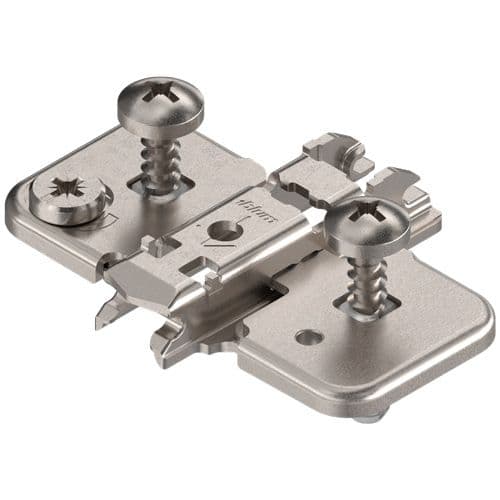

Blum 174H7100E - Clip Cruciform Mounting Plate (with Cam, 0mm)
A versatile cruciform plate with cam adjustment for precise alignment. Comes with pre-mounted screws and dowels for 5mm holes.
Typical use and benefits:
- Provides fine tuning after installation
- Widely applicable across standard cabinetry
- Easy alignment during installation
- Suitable for projects requiring consistent adjustability
This is often used as a general-purpose adjustable plate in a wide range of cabinet builds.

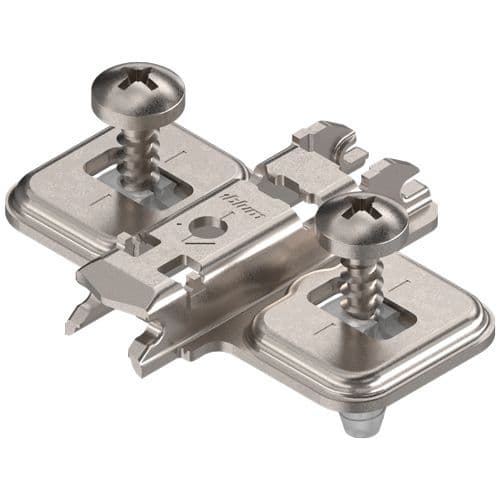

Blum 174E6100.01 – Clip Cruciform Mounting Plate (0mm, manually-Adjustable)
A simplified, manually -adjustable clip-on mounting plate. Comes with pre-mounted screws and dowels for 5mm holes.
Typical use and benefits:
- No cam adjustment for maximum simplicity
- Quick installation with fewer moving parts
- Suitable for accurately manufactured cabinets
- Reduces fitting time on repeat installations
This plate is typically used where cabinets are already square and consistent, and adjustment is not required.

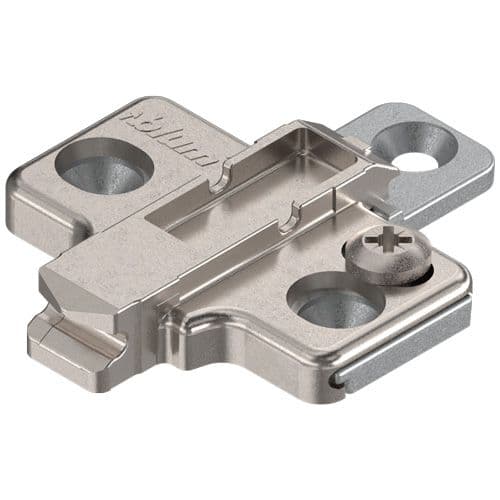

Blum 175H7100 - Diecast Cruciform Mounting Plate (0mm)
A robust, standard-height clip-on plate designed for straightforward installations. Suitable for self-tapping screws with a recommended 2.5mm pilot hole.
Typical use and benefits:
- Simple, reliable construction
- Single release screw features for fast adjustment
- Suitable for high-volume fitting work
- Common in standard cabinetry applications
This is generally selected where simplicity and speed are priorities.
Summary
Blum mounting plates are available with elongated hole, 2-Part or cam adjustable formats, allowing installers to select the most appropriate option depending on site conditions and manufacturing accuracy.
- Adjustable cam plates (e.g. 173H7100, 174H7100E) are suitable where fine alignment may be required after installation.
- 2 -part adjustment (e.g. 175H7100) For manual adjustment without disturbing fixing screws
- Elongated hole adjustment (e.g. 174E6100.01, 173L8100) are used where cabinets are accurately manufactured and speed is a priority.
- Horizontal plates (all cam height adjustable) are selected where installation access or cabinet design makes vertical fixing less practical.
By selecting the correct mounting plate for each application, installers can achieve a balance of efficiency, reliability, and alignment accuracy across different projects.
No matter the project, the right Blum mounting plate ensures faster and stress-free installation. For further guidance, email us at sales@trade-hinges.co.uk or call 01924 264 545.
