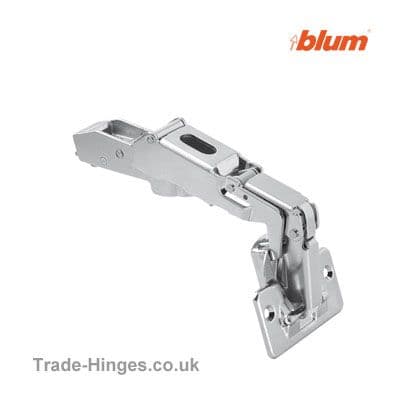

170° Hinge - Inset

Blum 170° hinge kit for inset door applications, consists of 1 x hinge and mounting plate.

Please note: due to the Blum hinges design, it is not suitable for use on cupboards or furniture that are accessible or reached by small children as small fingers may get between the working mechanism and the hinge. In this instance we recommend the 155° zero protrusion hinge be used.

For doors in excess of 22mm thick, a trial application is recommended, or consider using Blum 155° zero protrusion hinges - Click Here

Consists: Twin Application Hinge, 9mm Mounting Plate		Technical Guide Specifications
Opening Angle		170 Degree
Boss Type		Screw On
Boss Bore Size		35mm x 11mm Deep
Door Thickness		Designed for 16 to 22mm
Blumotion Soft Close		Purchase Separately
Adjustment		3 Way with Spiral-Tech
Side Adjustment		+ / - 2 mm
Depth Adjustment		+ 3 / - 2mm
Accessories
	Blumotion Device	973A6000	Click Here..
